FMIC installed

kdetlor's picture
Offline

Kitchener, ON

Apr 21, 2010

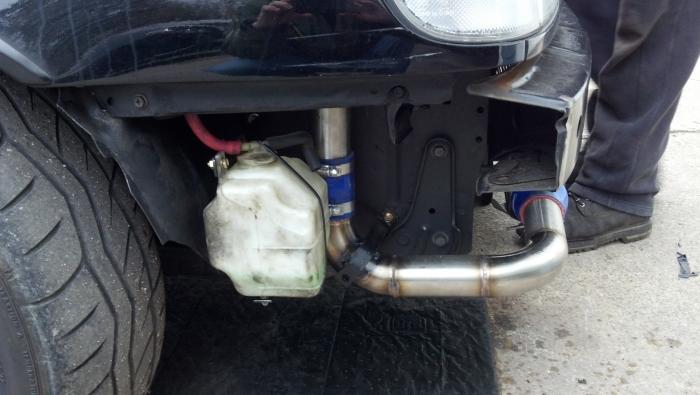

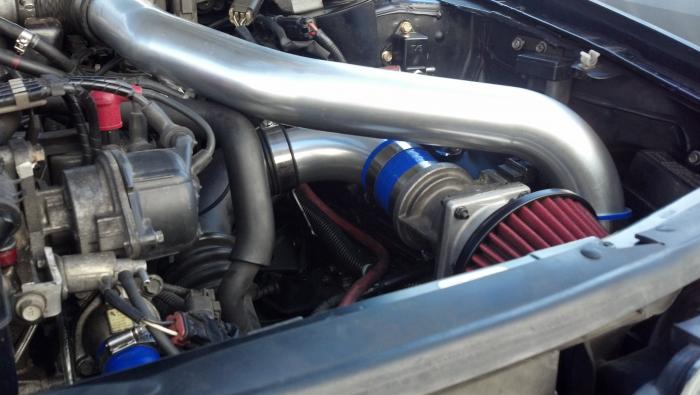

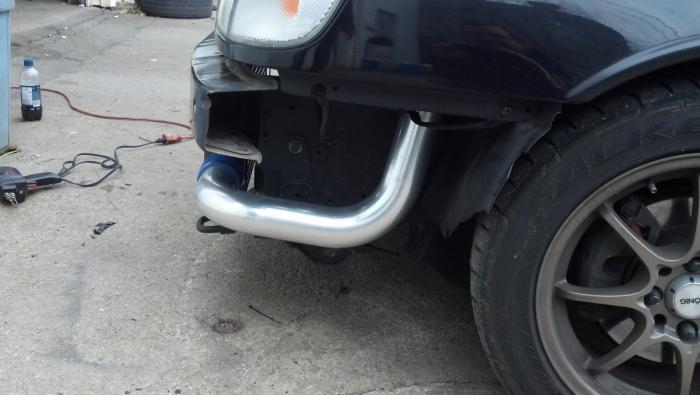

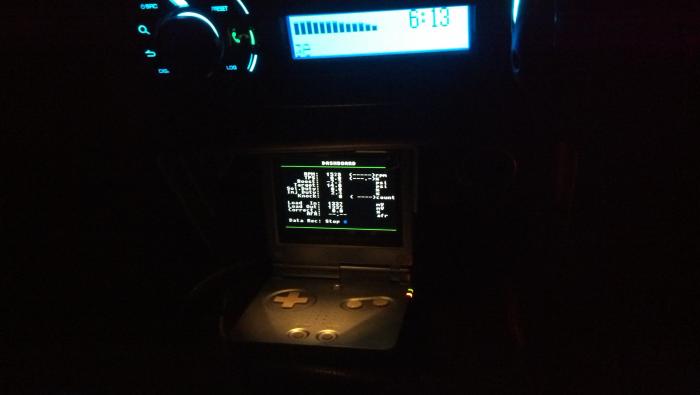

GtiR_interior__4_.jpgNew rad :) I bought nice pretty blue rad hoses, then the rad blew, go figure! Now the new top hose doesn't fit. :( I mounted the FMIC late fall, picked up a cheap piping kit. I lost my house and garage so I had a really good garage do this work for me. Hot side didn't fit so Saisan motors welded up a stainless one for me :) Z32 MAF, she no work! :( at least not with the mines ECU that was also put in. :) Boost is now set to 14 psi :) I also had the Turbo XS boost controller (the one with the game boy!!!) installed for monitoring and tuning. :) She works! Wow, what a difference. I had some knocking at high throttle around 4-6k rpm. I increased the injector duty a little bit around that curve and no more knocking. Going to need some proper tuning this summer. Any volunteers? Props to Saisan Motors for doing all this instal and fab for me. Super cool bonus...The intake filter is nice and tucked down on it's custom mounts, the overflow bottle is up front under the bumper where the wiper fluid was, again on it's own custom mounts.


GTi-R, the best ugliest car I've EVER seen/driven. You can make it cool, you can make it fast but you CAN'T make it look pretty.

kdetlor's picture
Offline

Kitchener, ON

Apr 21, 2010

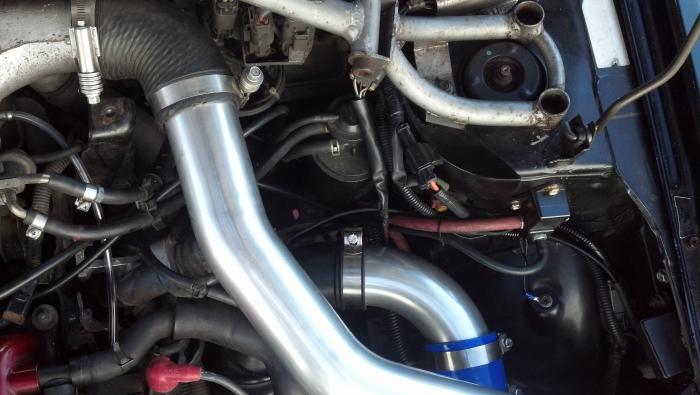

GtiR_engine__5_.jpg2011-12-03_14-32-25_923.jpg2011-12-03_14-32-38_638.jpgGtiR_engine__6_.jpgGtiR_engine__9_.jpg

GTi-R, the best ugliest car I've EVER seen/driven. You can make it cool, you can make it fast but you CAN'T make it look pretty.

canadianR's picture
Offline

Saskatoon, SK

Jan 29, 2008

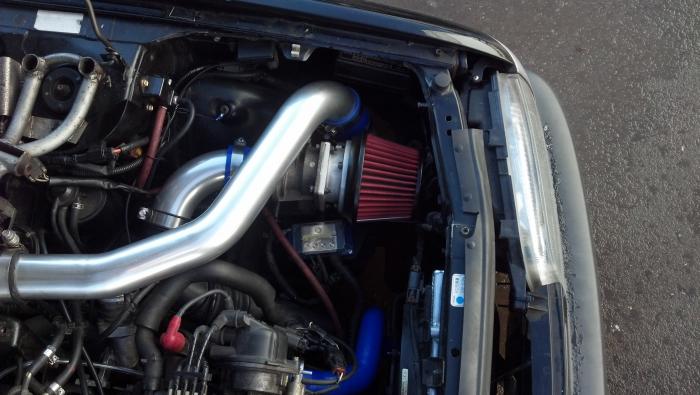

can you post more pictures of the air filter to turbo inlet piperun? That is my current battle right now. Thanks alot, and your car looks great!

RNN14

kdetlor's picture
Offline

Kitchener, ON

Apr 21, 2010

Thank you canadianR
. Check out new pictures. The battery move took a long time but was not really technical or difficult. You can see the small terminal block where the battery used to be with the wires going in and out. Good luck.

Ken

GTi-R, the best ugliest car I've EVER seen/driven. You can make it cool, you can make it fast but you CAN'T make it look pretty.

canadianR's picture
Offline

Saskatoon, SK

Jan 29, 2008

thanks for the pictures.

My rad overflow is in that spot (wouldn't fit with the fmic where most people put theirs). Back to the drawing board for me :|
